Multi-Beam Ion Beam Processing Systems for Precision Surface Engineering

Advanced materials research increasingly depends on the ability to control surfaces and interfaces with exceptional accuracy. In many modern applications, the surface is not merely a boundary between a material and its environment. It determines optical performance, electrical behavior, adhesion, wear resistance, corrosion response, biological compatibility, and the reliability of an entire device. As component dimensions become smaller and functional coatings become more sophisticated, conventional polishing, chemical treatment, and single-purpose deposition technologies may not provide the process flexibility or level of control required by research and industrial users.

The IMP120 Multi-Beam Ion Beam Processing System is designed to address these challenges through a versatile vacuum-based platform for ion beam etching, ion beam deposition, polishing, and surface modification. Its multi-beam architecture enables independently controlled ion sources to perform complementary processing steps in a coordinated environment. Depending on the process configuration, one beam can support material removal while another assists with deposition, surface activation, cleaning, densification, or other forms of interface engineering.

This approach gives users a broader process window than systems restricted to a single ion source or a single surface treatment method. It also supports more efficient development of advanced thin films, optical coatings, semiconductor structures, protective layers, and functional surfaces. By combining independent beam control, high-vacuum processing, process monitoring support, and adaptable material compatibility, the IMP120 is positioned as a research and production platform for organizations that require repeatable and finely controlled results.

Beyond the equipment itself, the strength of a precision laboratory system depends on the engineering capability of its manufacturer. JIANGSU BAISHENG INDUSTRIAL CO., LTD. has developed its business around laboratory equipment, electronic testing systems, safety testing instruments, and customized technical solutions. Its technology-focused background, dedicated research and development team, and experience in international trade allow it to support users not only with equipment supply but also with application-oriented communication and product customization.

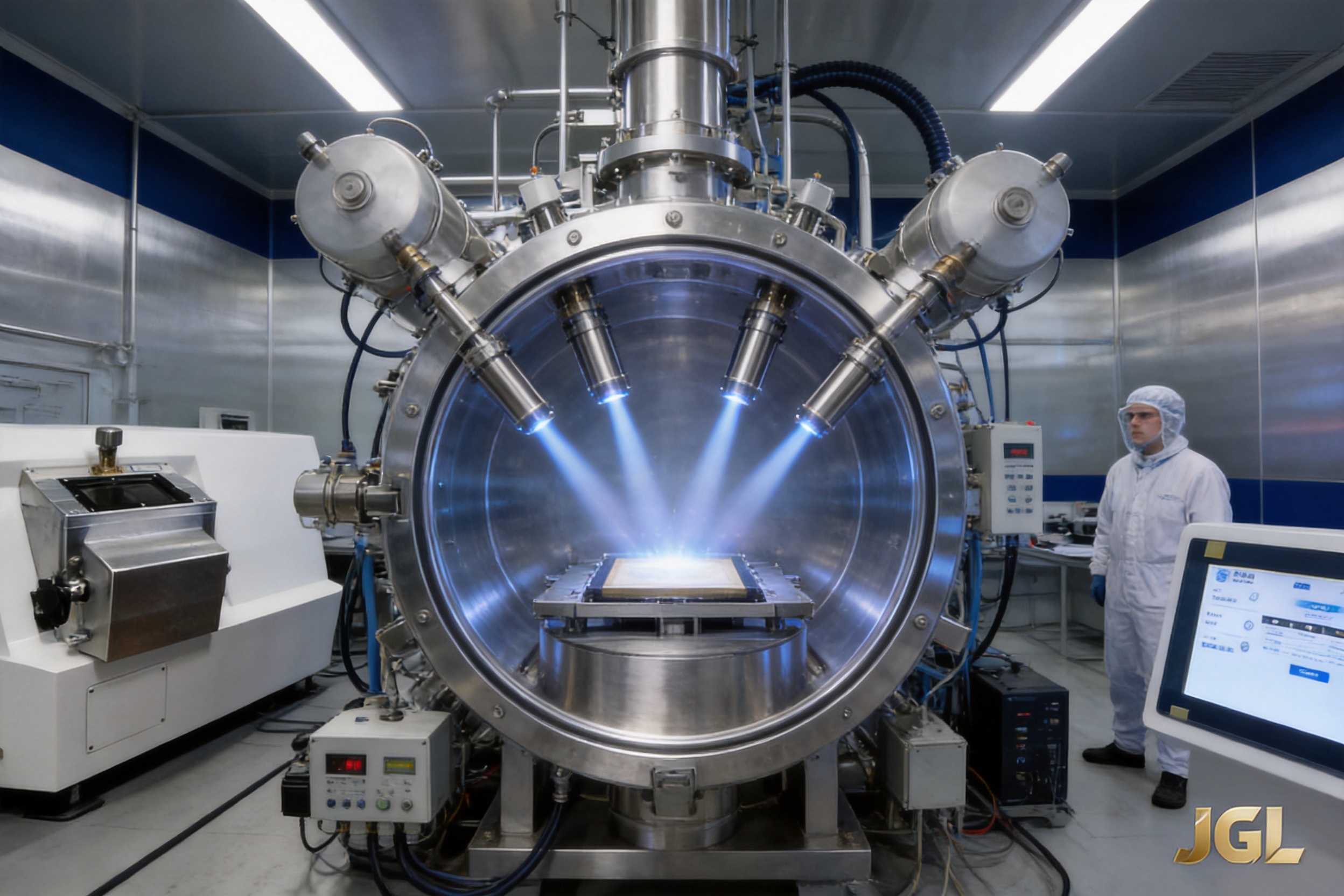

IMP120 Multi-Beam Ion Beam Processing System for Surface Modification and Thin Film Engineering

1. The Role of Ion Beam Processing in Modern Materials Engineering

Ion beam processing uses accelerated ions to interact with a target surface under controlled vacuum conditions. When ions strike a material, they can transfer energy and momentum to atoms near the surface. This interaction can be used to remove material, alter surface chemistry, promote adhesion, compact a deposited film, or modify the microstructure of a coating. By adjusting parameters such as ion energy, beam current, incident angle, exposure time, and process atmosphere, engineers can tailor the result to the requirements of a specific material system.

Ion beam etching is particularly valuable when dimensional accuracy and low surface damage are important. Compared with some wet chemical processes, ion beam etching can provide a more directional and controllable method of removing material. This is useful for microstructures, patterned surfaces, optical components, and electronic devices where excessive undercutting or chemical contamination could compromise performance.

Ion beam deposition and ion-assisted deposition provide another important group of capabilities. During thin film formation, energetic ions can influence the way atoms arrange themselves on a substrate. Ion assistance may improve film density, adhesion, crystallinity, stress control, and interface quality. These benefits are relevant to optical coatings, electronic films, protective layers, sensor structures, and many other applications in which the performance of a film depends on more than its nominal thickness.

Ion beam polishing offers a further advantage for high-value components. It can be used to refine surface topography, reduce selected defects, and improve the finish of micro- and nano-scale structures. The process is especially attractive when the component is too delicate, too small, too hard, or too geometrically complex for conventional mechanical polishing.

The challenge is that these applications often require different processing conditions. A beam used for precision etching may require settings that differ substantially from those used for deposition assistance or surface activation. A system that allows several beams to be configured independently therefore gives users a practical way to address multiple process objectives within one platform.

2. Overview of the IMP120 Platform

The IMP120 is a multi-beam ion beam processing system developed for surface modification and thin film engineering. It is intended for research laboratories, process development centers, advanced manufacturing facilities, and industrial users that need a flexible platform rather than a narrowly defined production tool.

Its central design concept is the integration of multiple independently controlled ion beams. Each ion source can be adjusted separately, allowing users to define beam energy, current, and incident angle according to the requirements of the process. The beams may be used simultaneously or sequentially, depending on the desired sequence of etching, deposition, polishing, cleaning, or surface treatment operations.

This architecture supports several important process strategies. A user may apply one beam to modify the substrate before deposition, use another to assist film growth, and then use a controlled finishing step to refine the final surface. Alternatively, separate beams can be assigned to different regions, materials, or process functions, provided that the application configuration is designed accordingly.

The system operates under high-vacuum conditions. A controlled vacuum environment reduces the presence of unwanted gases, particles, moisture, and other contaminants that may affect the quality of a thin film or modified surface. Vacuum processing also supports stable ion transport and helps establish a clean interface between the substrate and deposited material.

The IMP120 is not limited to one material family. Its process adaptability makes it suitable for metals, semiconductors, ceramics, optical materials, and protective coating systems. The exact configuration and process recipe can be developed according to the substrate geometry, target material, required surface properties, and production objectives.

3. Multi-Beam Architecture and Independent Control

The most important competitive characteristic of the IMP120 is its multi-beam configuration. Traditional single-beam systems can be effective for a defined process, but their usefulness may become limited when a project requires several surface operations or a wider range of processing conditions. Switching between tools can increase handling time, introduce alignment variation, and expose sensitive surfaces to contamination or accidental damage.

A multi-beam system reduces the need to move a substrate between separate process environments. This can simplify workflow and improve process continuity. It also provides engineers with more freedom to develop integrated process sequences. For example, a surface may be cleaned or activated before a film is deposited, followed by ion-assisted densification or a controlled polishing stage. Performing related operations in a coordinated vacuum environment can help reduce variability at interfaces.

Independent ion beam control is equally important. Each source can be tuned rather than forcing all beams to operate under identical conditions. Beam energy influences the depth and intensity of ion-material interactions. Beam current affects the ion flux and therefore the process rate. The incident angle influences directionality, sidewall interaction, surface texture, and the way material is removed or deposited.

This independence allows users to create more refined process recipes. A high-energy beam may be selected for a demanding etching step, while a lower-energy beam is used for gentle surface activation or finishing. The ability to change parameters independently also helps researchers investigate cause-and-effect relationships during process development.

Compared with less flexible systems, the IMP120 can offer a broader operating range for experimental work. Materials scientists can evaluate how different beam conditions affect film density, interface adhesion, surface roughness, and microstructure. Production engineers can use the same flexibility to optimize throughput, uniformity, and repeatability after the desired process window has been identified.

3.1 Simultaneous and Sequential Processing

Multi-beam operation can be organized in simultaneous or sequential modes. Simultaneous processing may be useful when two or more beam functions need to interact during the same stage. For example, ion assistance can occur while a thin film is being deposited. This may influence the growing film by encouraging denser packing, improving adhesion, or modifying the structure of the coating.

Sequential processing provides a different advantage. A substrate can undergo one treatment before another begins, allowing each stage to be optimized without requiring physical transfer. Such a sequence may include surface cleaning, substrate activation, deposition, etching, polishing, or post-treatment. The exact order depends on the material system and the intended result.

Both operating approaches help researchers move beyond isolated unit operations. Instead of considering deposition, etching, and polishing as entirely separate activities, engineers can design a connected process route in which each stage supports the next.

4. Precision Surface Modification

Surface modification is often used to change the performance of a material without altering its bulk properties. A metal component may require improved wear resistance, a ceramic may need better adhesion to a coating, and a semiconductor surface may require carefully controlled removal or activation. Ion beam processing can address these needs through controlled energy delivery at or near the surface.

The IMP120 supports surface engineering strategies that target roughness, density, interface quality, composition, and microstructure. These characteristics are interconnected. A change in surface roughness can influence coating adhesion. Film density can affect barrier performance and optical behavior. Interface quality can determine whether a multilayer structure remains stable during thermal cycling or mechanical use.

Fine process control is particularly important when working with thin films and microstructures. Excessive ion energy may create unwanted damage, while insufficient energy may fail to produce the desired modification. Independent control of beam parameters allows the process engineer to balance removal rate, surface integrity, and final performance.

Another advantage is the possibility of adapting the process to complex material combinations. Metals, semiconductors, ceramics, and optical coatings do not respond identically to ion bombardment. A recipe developed for one material may not be appropriate for another. Adjustable beam conditions and configurable process sequences give users a practical foundation for material-specific optimization.

For research institutions, this adaptability can reduce the need to purchase separate equipment for every experimental objective. For industrial users, it can support the development of multiple products or coating families on one flexible platform. In both cases, the system can contribute to a more efficient use of laboratory space, engineering resources, and process development time.

5. Thin Film Engineering and Interface Control

Thin film performance depends on more than thickness and nominal composition. Film density, internal stress, adhesion, surface roughness, defect concentration, and interface chemistry all influence the behavior of the finished structure. These factors become especially significant in optical coatings, electronic devices, protective films, and multilayer systems.

Ion beam assistance can influence the energy available to atoms during film growth. When appropriately controlled, this additional energy may encourage atoms to occupy more stable positions and can help reduce voids or weakly bonded regions. It may also improve the connection between the film and substrate. The outcome depends on the material, deposition method, beam conditions, substrate temperature, geometry, and other process variables, so experimental optimization remains essential.

The IMP120 provides an environment in which these variables can be investigated systematically. Independent beams can be configured to support deposition and surface treatment functions. Researchers can compare different incident angles, energy levels, and current settings while monitoring changes in film structure and performance.

Interface engineering is another area in which the platform can provide value. A clean and properly activated substrate can improve the initial nucleation of a film. A controlled transition between layers can reduce defects in multilayer structures. A finishing treatment may improve the outer surface without disturbing the underlying layers. These steps can be combined in a planned sequence within the vacuum system.

For optical applications, surface uniformity and low defect levels are often critical. For electronic applications, interface cleanliness and dimensional control may be more important. For protective coatings, adhesion, density, and resistance to wear or chemical exposure may dominate the specification. The multi-beam design allows the process to be adapted to these different priorities rather than relying on one fixed operating condition.

5.1 Optical Coatings

Optical coatings can require carefully controlled thickness, refractive index, surface roughness, and interface quality. Applications may include reflective layers, antireflective films, filters, protective optical coatings, and multilayer structures. Ion beam processing can assist with surface preparation, film densification, and finishing operations.

The IMP120 is suitable for process development involving optical materials and coatings because it allows engineers to study the relationship between beam parameters and optical surface performance. Depending on the specific configuration, the system can support controlled etching, deposition assistance, and polishing strategies for optical components.

5.2 Electronic and Semiconductor Structures

Electronic and semiconductor manufacturing often requires accurate pattern transfer, controlled surface cleaning, and precise material removal. Small variations in etch depth, sidewall profile, residue, or interface condition can influence device performance. A controlled ion beam can provide a directional alternative to some conventional techniques.

In research environments, the IMP120 can support experimentation with substrate preparation, thin film structures, surface activation, and micro-scale etching. Its independent beam control is useful when process engineers need to investigate how ion energy and incident angle affect a sensitive semiconductor surface.

5.3 Protective and Functional Coatings

Protective coatings are used to improve resistance to wear, corrosion, thermal exposure, or chemical attack. Functional coatings may provide electrical, optical, catalytic, or tribological properties. In both cases, adhesion and interface integrity are fundamental to long-term performance.

Ion beam surface preparation can remove contaminants and modify the substrate before coating. Ion-assisted deposition can support denser films and stronger interfaces when the process is correctly optimized. Post-deposition ion treatment may also be used to refine the outer surface or adjust selected properties.

6. High-Vacuum Processing and Contamination Control

High-vacuum operation is a core feature of the IMP120. Thin film and surface modification processes are sensitive to contamination from water vapor, hydrocarbons, residual gases, and particles. Uncontrolled contamination can affect film adhesion, composition, optical behavior, electrical characteristics, and repeatability.

A clean vacuum environment helps provide a more stable background for ion beam operation and deposition. It also reduces the likelihood that unwanted species will become trapped at the substrate-film interface. This is particularly important for multilayer coatings and applications in which the interface contributes significantly to final performance.

Vacuum processing also improves process definition. When the atmosphere is controlled, engineers can more reliably relate the results to intentional parameters such as beam energy, current, angle, exposure time, and material flow. This supports more meaningful experimentation and makes it easier to compare one process run with another.

High-vacuum equipment must be designed and assembled with attention to sealing, chamber cleanliness, component compatibility, electrical insulation, thermal management, and maintenance access. These details are essential to long-term reliability. A system may have advanced beam sources, but its practical performance also depends on the quality of the chamber, vacuum components, fixtures, controls, and integration work.

The IMP120 is intended as a complete processing platform rather than an isolated ion source. Its value comes from the coordinated relationship between the ion beams, vacuum chamber, substrate handling, control system, and monitoring interfaces. This integrated approach can help users build stable recipes and reduce the process variation associated with improvised laboratory setups.

7. In Situ Monitoring and Process Reproducibility

Reproducibility is one of the most important requirements in both research and industrial processing. A result that can be achieved only once is not sufficient for a production process, and it is difficult to build reliable scientific conclusions from inconsistent experiments. Process monitoring helps users identify changes during operation and respond before they affect the finished surface or film.

The IMP120 supports compatibility with in situ monitoring and feedback modules. The specific instruments and sensors can be selected according to the process objectives. Monitoring may include information related to deposition rate, film thickness, vacuum conditions, beam parameters, substrate temperature, optical response, or other relevant variables.

In situ monitoring offers several advantages over inspection only after the process is complete. It can provide immediate information about whether the system is operating within the intended window. It may help detect drift, instability, or unexpected behavior while the substrate is still inside the chamber. It can also support the development of feedback strategies in which process parameters are adjusted according to measured conditions.

For research users, monitoring improves the quality of experimental records. Instead of documenting only the final film or surface, the user can correlate results with a more complete history of the process. This makes it easier to identify the conditions responsible for a successful outcome.

For industrial users, monitoring can support process qualification, batch comparison, and quality control. Consistent records are valuable when a process must be transferred from development to production or when customers require evidence of stable manufacturing conditions.

8. Advantages Over Conventional Single-Purpose Systems

The IMP120 offers several potential advantages over conventional single-purpose ion beam systems. The first is process versatility. A single-beam tool may be optimized for etching, deposition assistance, or polishing, but users may need multiple systems to cover a broader range of operations. A multi-beam platform can bring these functions together in one coordinated environment.

The second advantage is reduced substrate handling. Moving a substrate between separate tools introduces additional alignment steps and may expose the surface to ambient contamination. Integrated processing can help protect sensitive interfaces and reduce variability caused by repeated loading and unloading.

The third advantage is process experimentation. Independent beam control gives researchers more variables with which to investigate material behavior. This is valuable when developing new coatings, working with unfamiliar substrates, or optimizing a process for a demanding application.

The fourth advantage is scalability of knowledge. A process developed on a flexible platform can be adjusted for different materials, surface geometries, or application requirements. Although every application requires validation, the underlying system can support more than one product category or research direction.

The fifth advantage is equipment utilization. A platform capable of etching, deposition, polishing, and surface modification may be used by several departments or project teams. This can improve the return on investment for laboratories that need diverse capabilities but cannot justify a separate tool for every operation.

These advantages should not be interpreted as a guarantee that the IMP120 will replace every specialized manufacturing tool. High-volume production may require dedicated systems with highly optimized throughput, and some applications may demand additional modules or custom configurations. The strength of the IMP120 lies in its flexibility, process integration, and suitability for advanced research and adaptable industrial development.

9. Manufacturing and Engineering Strengths

The performance of a complex laboratory processing system depends heavily on manufacturing discipline. Ion beam equipment combines vacuum engineering, electrical systems, precision mechanics, control software, thermal management, process integration, and application knowledge. Weakness in any one of these areas can reduce overall reliability.

JIANGSU BAISHENG INDUSTRIAL CO., LTD. has positioned itself as a technology-driven supplier of high-end laboratory equipment and safety testing instruments. The company was founded in 2010 and has developed its capabilities through a combination of research and development, product engineering, manufacturing coordination, and international technical service.

Unlike a conventional trading company that depends primarily on external product catalogs, the company emphasizes its own engineering and product development capability. Its dedicated R&D team focuses on precision design and technical performance. This foundation is important for customized equipment because laboratory users often require changes to chamber dimensions, fixture arrangements, process controls, monitoring interfaces, beam configurations, or application-specific functions.

The company’s development history began with an electronic testing research and development studio in 2013. The founding engineers brought technical experience in laboratory equipment and safety compliance testing. In 2016, the organization transitioned into an enterprise and completed its first independently developed production line. It subsequently launched high-end laboratory equipment incorporating independent intellectual property and internally developed engineering expertise.

In 2019, the company adopted a technology-plus-trade development strategy. This approach combined continued R&D investment with expansion into overseas markets. The result is a business model that seeks to connect technical design with the practical communication requirements of international customers. Such communication is valuable when a customer must define process objectives, equipment interfaces, installation conditions, documentation requirements, and after-sales support expectations across different regions.

9.1 Precision-Oriented Product Development

Precision equipment requires a design process that considers both nominal specifications and real operating conditions. Mechanical tolerances, alignment, material selection, electrical stability, vacuum compatibility, and thermal behavior all influence process performance. The company’s stated emphasis on precision design supports a development philosophy in which these factors are considered together rather than as isolated components.

For an ion beam system, precision-oriented engineering may include attention to source positioning, substrate alignment, chamber geometry, beam incidence, electrical isolation, control interfaces, and access for maintenance. The exact implementation depends on the final system configuration, but the principle remains the same: stable and repeatable surface processing requires coordinated engineering across the entire equipment architecture.

9.2 Customized Solutions

Many users of advanced laboratory equipment do not need an off-the-shelf product with generic functions. They may need to process an unusual substrate size, accommodate a specialized fixture, integrate a particular monitoring module, or develop a process sequence that is not available in a standard configuration.

Customization can therefore be a major competitive advantage. A manufacturer with an internal R&D team can communicate more directly with the customer about technical requirements and feasibility. The company’s stated commitment to customized solutions aligns with the IMP120’s flexible multi-beam concept. Customers can discuss their intended application and determine which beam sources, process controls, fixtures, vacuum components, and monitoring functions are appropriate.

Customization should be managed through a clear technical specification. Important topics include substrate dimensions, material types, desired process steps, beam energy range, current range, incident angle, vacuum requirements, automation level, safety interlocks, data logging, facility utilities, and acceptance testing. A structured engineering process helps ensure that customization improves practical performance rather than creating unnecessary complexity.

9.3 Quality Management and Technical Compliance

In 2022, the company further improved its quality management system, and its products underwent rigorous technical specification certification processes according to the company’s development information. Quality management is particularly important for laboratory systems because customers need confidence that equipment will perform consistently over repeated experiments and extended use.

A strong quality process can include design reviews, supplier evaluation, incoming inspection, assembly checks, electrical testing, vacuum testing, software verification, functional testing, documentation control, and final acceptance procedures. These activities help reduce the risk that a small assembly variation will become a significant process problem.

For international customers, technical documentation and communication are also part of quality. Manuals, operating instructions, maintenance procedures, safety information, inspection records, and installation requirements should be organized clearly. A manufacturer experienced in overseas markets can help customers understand how the equipment should be integrated into their laboratory or production environment.

10. Process Workflow with the IMP120

A reliable ion beam process begins before the substrate enters the chamber. The user should define the surface objective, substrate material, target film or modification, acceptable temperature range, dimensional tolerances, and performance criteria. These requirements determine the appropriate process sequence and beam configuration.

The next stage is substrate preparation. Cleaning, drying, inspection, and fixturing must be performed carefully. The substrate should be mounted in a way that provides stable positioning and appropriate exposure to the ion beams. For precision work, alignment is especially important because the incident angle and spatial relationship between beam and substrate influence the result.

After loading, the chamber is evacuated to the required vacuum condition. Vacuum stabilization allows residual gases and contaminants to be reduced before processing begins. Depending on the application, the substrate may then receive a pre-treatment such as ion cleaning or surface activation.

The main processing stage may involve etching, deposition, ion assistance, polishing, or a combination of these operations. Beam parameters are selected according to the material response and process objective. If multiple beams are used, the sequence or simultaneous operating relationship should be defined in advance.

Monitoring data should be recorded throughout the process. The user can compare actual conditions with the process recipe and identify drift or unexpected behavior. After processing, the substrate may receive a controlled finishing or stabilization step before the chamber is returned to a suitable condition for unloading.

Finally, the surface or film should be evaluated using appropriate analytical methods. Possible measurements include thickness, roughness, adhesion, optical response, electrical properties, composition, morphology, and defect inspection. The results can then be used to refine the next process cycle.

11. Applications Across Research and Industry

11.1 Materials Science Research

Materials science laboratories often need to evaluate how processing conditions influence surface and film properties. The IMP120 can support experiments involving surface activation, thin film growth, microstructure control, ion polishing, and interface engineering. Its configurable beams allow researchers to study multiple process variables without requiring a different machine for every test.

The system can also support comparative studies between metals, semiconductors, ceramics, and optical materials. Researchers can investigate how substrate composition, surface preparation, beam energy, current, and angle affect the final result. This makes the platform useful for both fundamental research and application-oriented development.

11.2 Optical Engineering

Optical component manufacturers and research groups may use ion beam processing to develop reflective coatings, antireflective structures, optical filters, protective layers, and other thin film systems. The ability to control surface roughness and film density is valuable when optical loss, scattering, and durability must be managed carefully.

Ion beam polishing and precision etching can also be applied to selected optical surfaces and microstructures. The suitability of a specific process depends on the component material and required geometry, but the IMP120 provides a flexible environment in which these processes can be evaluated and refined.

11.3 Semiconductor and Microfabrication Development

Microfabrication processes require careful control of material removal and surface condition. Ion beam etching can be considered for structures where directional processing and nanoscale control are important. The system may support development work involving patterned substrates, thin film stacks, surface cleaning, and interface preparation.

Because semiconductor materials can be sensitive to ion damage, process optimization is essential. The independently adjustable beam settings provide a mechanism for balancing etch performance against surface integrity. Monitoring and post-process characterization are important parts of this application.

11.4 Wear-Resistant and Protective Surfaces

Manufacturers of mechanical components, tools, sensors, and precision parts may require coatings that resist wear, friction, corrosion, or chemical attack. The IMP120 can support development of coating systems in which substrate preparation and interface quality are as important as the coating material itself.

Ion beam treatment may be used to clean or activate the substrate before deposition. Ion assistance during film growth can be investigated as a method of improving density and adhesion. Surface finishing can then be evaluated to determine whether roughness, friction, or other performance characteristics have been improved.

11.5 Electronic and Functional Surfaces

Functional surfaces are used in sensors, electronic components, energy-related devices, and advanced instruments. Their performance may depend on electrical conductivity, surface chemistry, catalytic activity, optical response, or controlled interaction with the surrounding environment.

The IMP120’s adaptable processing capabilities can support the development of these surfaces through controlled modification and thin film engineering. Users can select process conditions based on the required functional response and use in situ monitoring or subsequent characterization to evaluate the results.

12. Installation, Operation, and Maintenance Considerations

Advanced vacuum equipment should be installed in a facility that can provide the required utilities, environmental stability, safety provisions, and service access. Before installation, the customer should confirm space, floor loading, electrical supply, cooling requirements, compressed gases if applicable, exhaust arrangements, and access routes.

Operators should receive appropriate training in vacuum operation, ion source control, substrate handling, process recipe management, emergency procedures, and routine maintenance. A clear operating procedure reduces the risk of incorrect settings and helps protect both the equipment and the processed materials.

Maintenance normally includes chamber cleaning, inspection of seals and connections, checking electrical components, verifying vacuum performance, and assessing the condition of ion source parts and fixtures. The maintenance interval depends on process materials, operating hours, beam conditions, and contamination load.

Process documentation is also important. Each recipe should identify the substrate, fixture, beam settings, sequence, vacuum conditions, monitoring data, and inspection results. Consistent records help users reproduce successful results and diagnose problems when performance changes.

The manufacturer’s technical team can contribute by clarifying installation requirements, recommending configuration options, supporting commissioning, and assisting with application-specific adjustments. JIANGSU BAISHENG INDUSTRIAL CO., LTD.’s combination of engineering experience and international trade capability is intended to support this type of project from initial inquiry through delivery and technical communication.

13. Selecting a Multi-Beam Ion Beam System

When evaluating a system, buyers should begin with the intended applications rather than focusing only on a single headline specification. Important questions include whether the system must perform etching, deposition, polishing, or surface activation; whether processes must occur sequentially or simultaneously; and whether the substrate materials vary significantly.

The required process precision should also be defined. Users may need control over roughness, film density, interface quality, feature dimensions, or coating uniformity. These requirements influence beam source selection, substrate handling, monitoring, and automation.

Another consideration is future expansion. A laboratory may initially need one process but later develop additional coating or surface treatment projects. A flexible multi-beam architecture can provide room for broader applications, provided that the chamber, controls, fixtures, and vacuum system are selected with future needs in mind.

Service and customization should be evaluated alongside technical capability. A system manufacturer should be able to discuss process feasibility, facility requirements, safety, training, spare parts, documentation, and after-sales support. The ability to adapt the system to a customer’s real application can be more valuable than a standard specification that does not fit the intended workflow.

14. Comparative Value of the IMP120 Design

Evaluation Area	IMP120 Multi-Beam Approach	Potential Limitation of a Single-Purpose System
Process flexibility	Supports etching, deposition assistance, polishing, and surface modification within one adaptable platform.	May require separate equipment for different process functions.
Beam adjustment	Independent control of beam energy, current, and incident angle for each ion source.	All process conditions may be constrained by one source or one fixed operating range.
Process sequence	Can support coordinated simultaneous or sequential operations in a vacuum environment.	Substrate transfer between tools may be necessary.
Interface protection	Reduced handling can help limit exposure to ambient contamination between process stages.	Repeated loading and unloading may introduce alignment and contamination variables.
Research capability	Provides a wider experimental space for studying material response and thin film development.	Less convenient for projects involving multiple interacting process steps.
Customization potential	Can be configured around substrate materials, fixtures, monitoring modules, and application requirements.	Standardized systems may offer fewer options for specialized workflows.
Manufacturing support	Backed by an engineering-oriented supplier with R&D and international technical communication experience.	Some suppliers may focus mainly on equipment resale rather than application development.

The table illustrates the main value proposition of the IMP120. Its competitive position is based not only on the number of ion sources but also on the way those sources are integrated into a flexible process environment. Users should still compare detailed specifications, performance data, validation results, and support arrangements before making a final equipment decision.

15. Why Manufacturing Capability Matters

Ion beam processing systems are precision instruments, and their performance cannot be separated from manufacturing quality. A beam source must be integrated accurately with the chamber and substrate position. Vacuum components must be compatible with the intended process. Electrical and control systems must operate reliably under demanding conditions. Fixtures must hold substrates securely without interfering with beam access.

A manufacturer with internal engineering capability can identify relationships between these elements earlier in the design process. It can also respond more effectively when a customer requests a change. For example, altering the substrate size may affect chamber geometry, source placement, pumping speed, fixture design, and control programming. A coordinated engineering team is better positioned to evaluate the full impact of such changes.

JIANGSU BAISHENG INDUSTRIAL CO., LTD. describes its core advantage as the integration of innovative engineering with professional international trade expertise. This combination is relevant for customers seeking customized laboratory equipment from China. The company’s R&D background supports technical development, while its overseas market experience supports communication, quotation, documentation, logistics coordination, and customer service.

The company’s stated core values, “Precision in Craftsmanship, Innovation for the Long-Term,” are consistent with the requirements of advanced laboratory equipment. Precision is necessary for stable processing, and long-term innovation is necessary because material systems and application requirements continue to evolve. A supplier that continues to refine its products can help customers maintain a more capable process development infrastructure over time.

16. Quality, Reliability, and Long-Term Collaboration

Reliability should be viewed as more than the absence of immediate mechanical failure. For a laboratory processing system, reliability also includes stable vacuum performance, repeatable beam operation, dependable control functions, accessible maintenance, clear documentation, and responsive technical support.

Long-term collaboration is especially important when the equipment is customized. During the first stage, the customer and manufacturer must translate an application objective into a workable equipment specification. During installation, they must confirm that the system operates as intended in the customer’s facility. During process development, technical questions may arise that require adjustments to recipes, fixtures, monitoring, or operating procedures.

A manufacturer that understands both engineering and customer communication can support this process more effectively. The company’s history of developing laboratory and electronic testing equipment provides a foundation for working with customers whose requirements extend beyond a simple catalog purchase.

For international buyers, cooperation should include written specifications, defined acceptance criteria, training plans, spare parts recommendations, warranty conditions, and a clear process for technical inquiries. These factors help transform equipment delivery into a dependable operating relationship.

17. Future Development in Ion Beam Processing

The demand for advanced surface engineering is likely to grow as manufacturers pursue smaller features, more durable coatings, improved energy efficiency, and greater functionality from existing materials. Ion beam systems can contribute to these goals by enabling controlled modification at the surface and interface level.

Future development may involve higher levels of automation, improved process monitoring, data logging, recipe management, and feedback control. Digital integration can help users compare process runs, identify trends, and establish more consistent production conditions. Advanced analytics may also assist in connecting beam parameters with film performance and product quality.

Another direction is application-specific modularity. Different users may require different ion sources, fixtures, target materials, substrate motion systems, or monitoring instruments. A modular platform can make it easier to adapt the system as technical needs evolve.

The IMP120’s multi-beam concept is compatible with this broader development direction because it provides a foundation for integrated processing and independent control. Its usefulness can increase as users add better monitoring, develop more sophisticated recipes, and apply the system to new material combinations.

18. Frequently Asked Questions

Q1: What is the primary purpose of the IMP120?

The IMP120 is designed for ion beam etching, ion beam deposition, precision polishing, surface modification, and thin film engineering. It is intended for research and industrial users that require flexible and repeatable control over surface and interface properties.

Q2: What makes the system a multi-beam platform?

The system uses multiple ion beams or ion sources that can be controlled independently. Each source can be adjusted according to process needs, including beam energy, current, and incident angle. The beams may be operated simultaneously or sequentially.

Q3: What materials can be processed?

The platform is suitable for a broad range of materials, including metals, semiconductors, ceramics, and optical coating materials. The exact recipe must be developed for the specific substrate and target result because different materials respond differently to ion bombardment.

Q4: Can the IMP120 perform both etching and deposition?

Yes. Its multi-beam configuration is intended to support both ion beam etching and ion beam deposition, as well as related surface modification and polishing operations. The available functions depend on the selected system configuration and process modules.

Q5: Why is independent beam control important?

Independent control allows each beam to be optimized for a different process function or material response. Users can adjust energy, current, and angle without treating all beams as identical. This expands the process development range and helps balance removal rate, surface quality, adhesion, and film properties.

Q6: Does the system operate in a vacuum?

Yes. The IMP120 is a vacuum-based processing system designed to operate under high-vacuum conditions. A controlled vacuum environment helps reduce contamination and supports stable ion transport and clean thin film interfaces.

Q7: Can the system be used for nanoscale applications?

The system is intended to support fine surface control and micro- and nano-scale etching, polishing, and thin film engineering. Actual resolution and process performance depend on the material, geometry, beam configuration, fixture design, process recipe, and measurement method.

Q8: Does the IMP120 include process monitoring?

The system is compatible with in situ process monitoring and feedback modules. Monitoring equipment can be selected according to the application, allowing users to track relevant conditions and improve process stability and repeatability.

Q9: Is the system suitable for industrial use?

Yes. The platform is designed for both research and industrial environments. It can be used for process development, pilot production, specialized manufacturing, and applications requiring adaptable surface processing. Industrial users should confirm throughput, automation, fixture capacity, and acceptance requirements for their specific application.

Q10: Can the equipment be customized?

Customization is one of the company’s stated strengths. Customers can discuss requirements involving substrate dimensions, fixtures, beam sources, process sequencing, monitoring modules, control functions, and other application-specific features. A formal technical specification should be prepared before production.

Q11: What should customers prepare before requesting a quotation?

Customers should provide information about substrate material and size, desired process steps, target film or surface properties, required accuracy, expected throughput, facility conditions, available utilities, monitoring needs, and automation preferences. Detailed information helps the manufacturer recommend a more suitable configuration.

Q12: What is the manufacturer’s main competitive strength?

The company combines product R&D, precision engineering, laboratory equipment development, and international trade experience. This allows it to provide more than a standard equipment supply service and to work with customers on customized laboratory and testing solutions.

19. Conclusion

The IMP120 Multi-Beam Ion Beam Processing System provides a flexible approach to advanced surface modification and thin film engineering. Its multi-beam configuration supports independently controlled ion sources, allowing users to perform etching, deposition assistance, polishing, and other surface treatment operations in coordinated sequences. High-vacuum processing helps maintain clean interfaces, while compatibility with in situ monitoring supports process stability and repeatability.

Compared with conventional single-purpose systems, the IMP120 offers greater process adaptability, reduced substrate handling, and a broader platform for materials research and industrial development. Its ability to work with metals, semiconductors, ceramics, and optical coating materials makes it suitable for a wide range of applications, from precision microfabrication and optical coating development to protective surface engineering and functional thin film research.

The system’s value is reinforced by the engineering and manufacturing capabilities of JIANGSU BAISHENG INDUSTRIAL CO., LTD. Since its development from an electronic testing R&D studio into a technology-driven laboratory equipment enterprise, the company has emphasized precision design, independent product development, quality management, and customized solutions. Its combination of technical expertise and international trade experience provides a practical foundation for serving customers with complex laboratory equipment requirements.

For organizations seeking a versatile platform for surface and interface control, the IMP120 represents a strong candidate for process development and specialized industrial use. Its final performance will depend on proper configuration, application-specific recipe development, facility preparation, and systematic characterization. With these factors addressed, the platform can help users move from basic surface treatment toward a more integrated and controllable approach to advanced materials engineering.

References

1. Company product information for the IMP120 Multi-Beam Ion Beam Processing System, including stated features, advantages, and application areas.

2. Company information for JIANGSU BAISHENG INDUSTRIAL CO., LTD., including corporate history, research and development capabilities, quality management development, and customization approach.

3. Handbook of Ion Beam Processing Technology, general principles of ion-solid interactions, etching, deposition assistance, and surface modification.

4. Thin Film Materials and Processes, general methods for film growth, interface engineering, adhesion improvement, and microstructure control.

5. Vacuum Technology and Applications, general practices for high-vacuum chamber design, contamination reduction, process stability, and equipment maintenance.

6. Surface Engineering of Materials, general concepts related to roughness, wear resistance, protective coatings, optical surfaces, and functional interfaces.

Product: IMP120 Multi-Beam Ion Beam Processing System for Surface Modification and Thin Film Engineering
